Turn any building into a living flora and fauna habitat

At architectural junctions such as wall connection, attic, doors, terrace, gutter, control box, water outlets, special attention is required to ensure proper sealing and efficient functioning of the green roof. The connection to different building elements is achieved by installing a separating layer of gravel between the substrate and the building element, of different thicknesses and widths, depending on the project requirements.

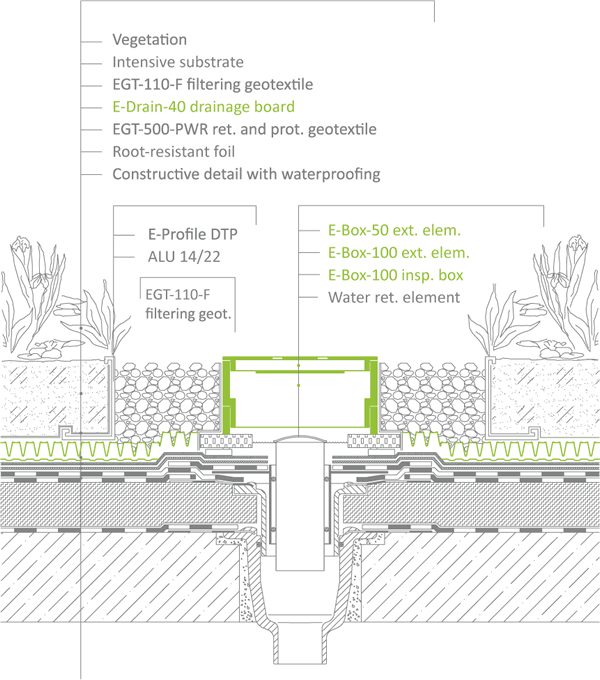

Inspection Box

Connection

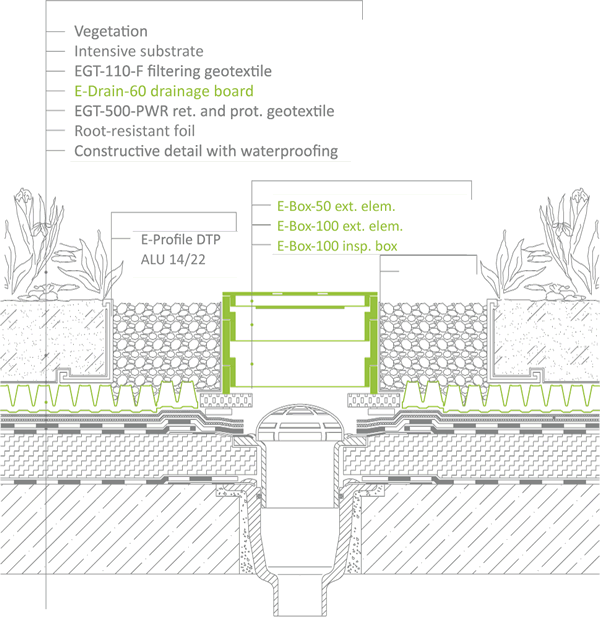

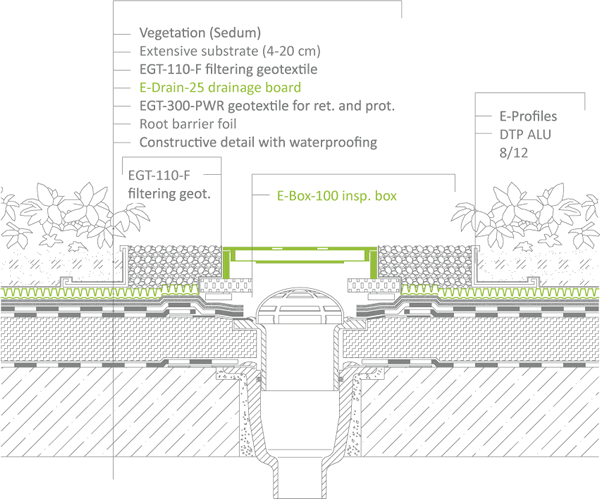

Inspection Box Connection

See: E-Drain 25

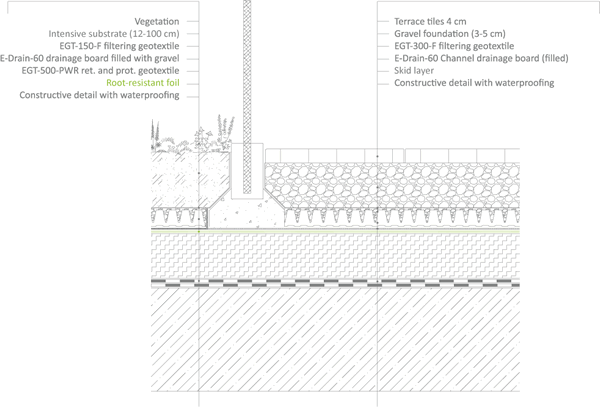

Railing

Connection

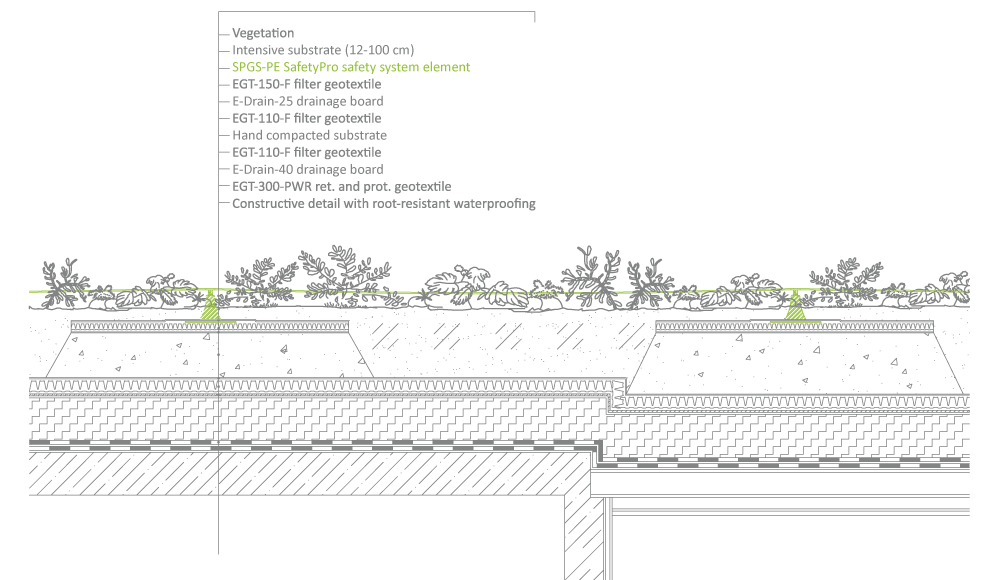

Safety System

Connection

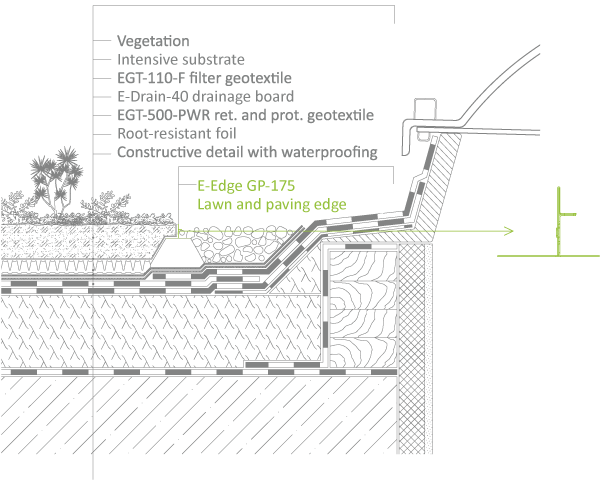

Rooflight/ Window

Connection

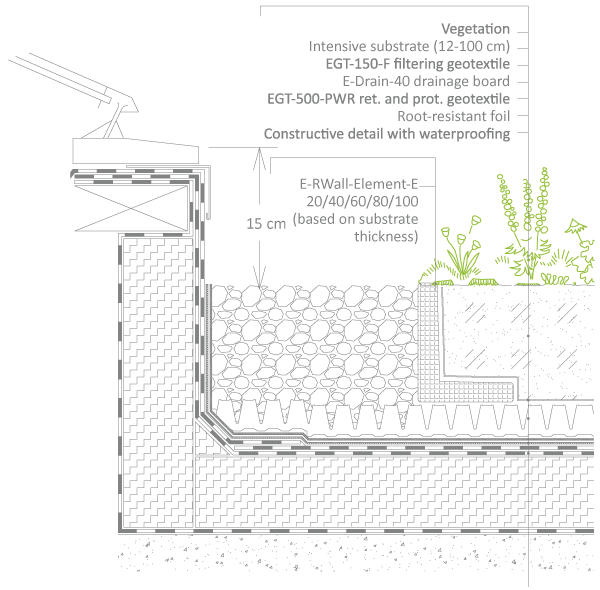

Rooflight/ Window Connection

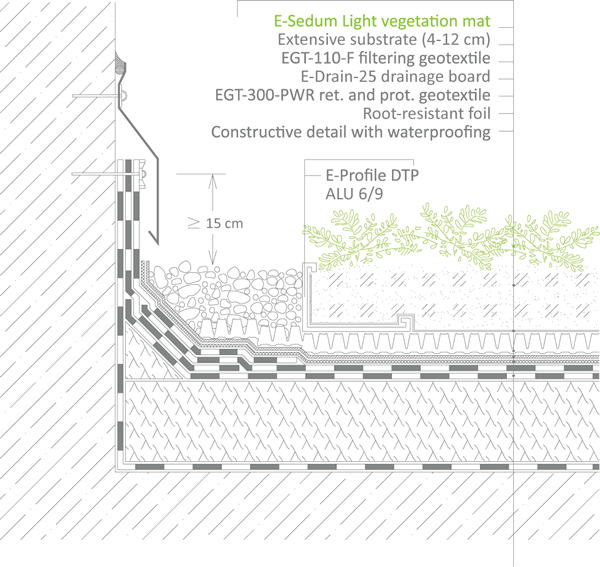

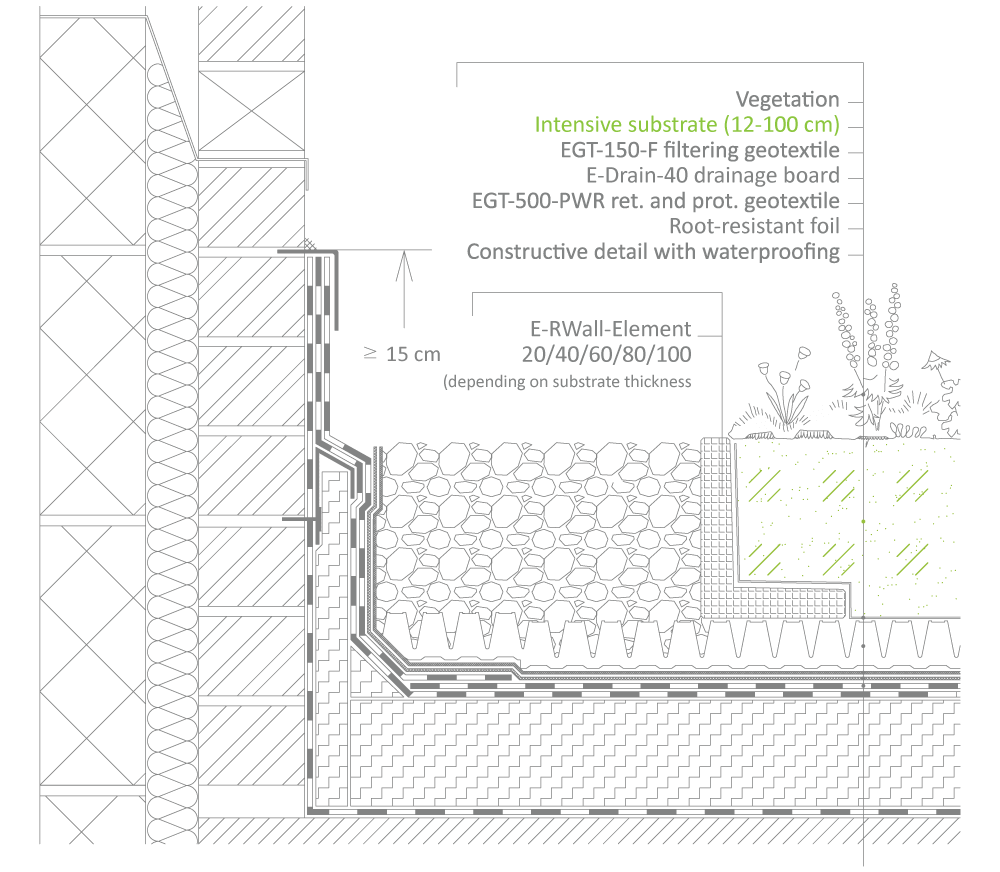

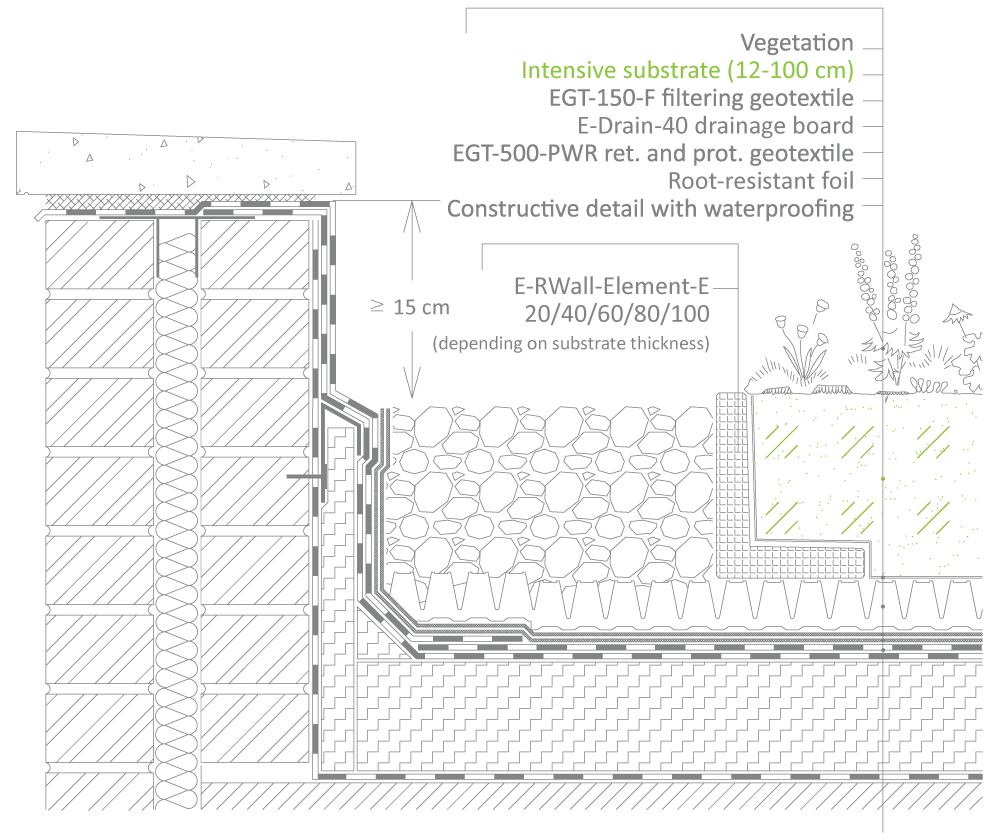

Wall and Attic

Connection

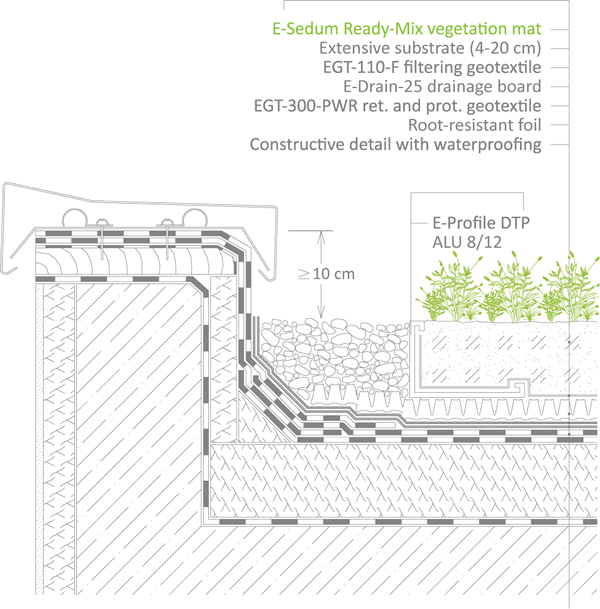

The connection to the wall and the attic is made with the installation of a protective gravel barrier, the height of the attic must be taken into account. The distance between the gravel layer and the edge of the attic must be at least 10 cm. Also, in the case of connection to the wall, the distance between the waterproofing closure and the gravel layer must be at least 15 cm high.

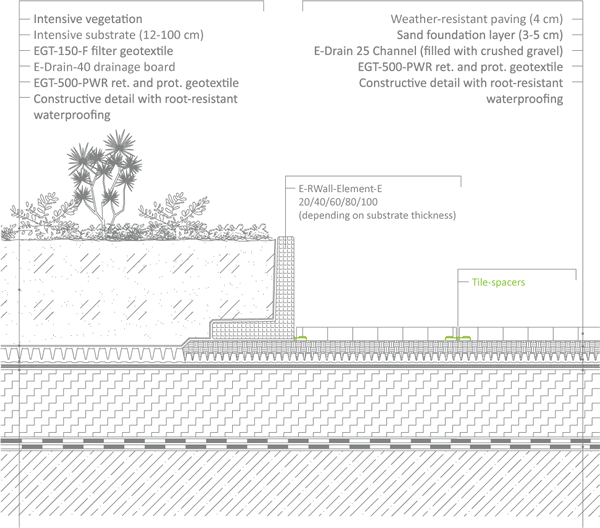

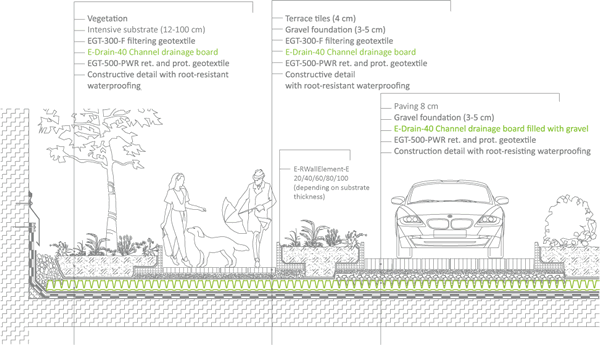

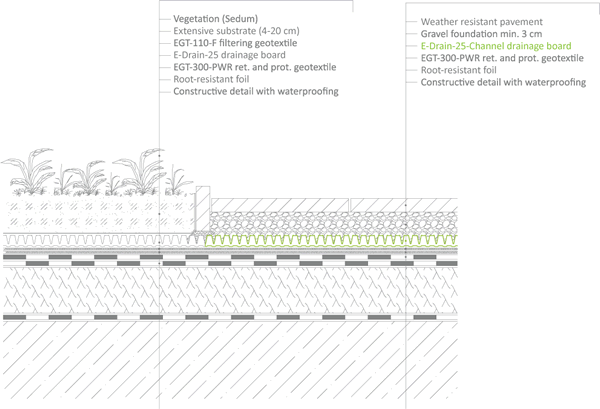

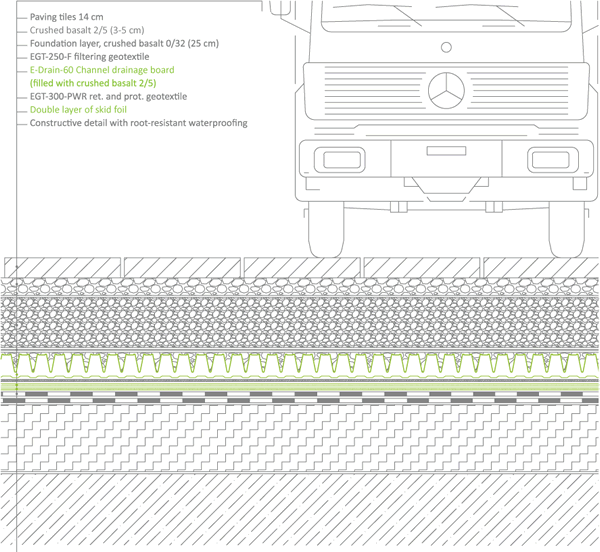

Vehicular And Pedestrian Pavements Connection

Parking lots with green spaces on the roof

The junction between the green roof and the pedestrian/car pavement can be achieved by installing a separation edge, or curb between the surfaces. Depending on the specifications of the project and the system used, this can also be a telescopic marginal profile, lawn and pavement edge or precast concrete element. The separating edge has the role of aesthetic and functional delimitation, it will prevent plants from growing over the pedestrian pavement.

Due to the complex technical systems used in green roofs and the high load-bearing capacity and increased compressive strength elements, complex projects can be realized at the roof level, such as: a roof parking combined with a green recreation area, playground for children and space for outdoor activities.

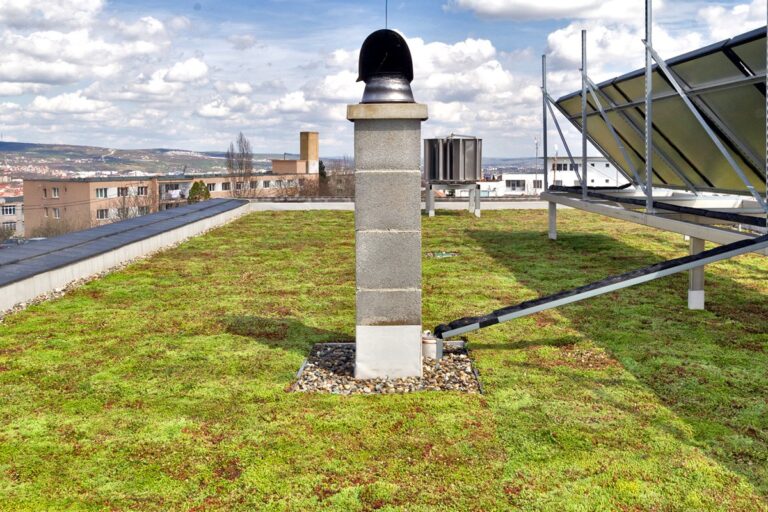

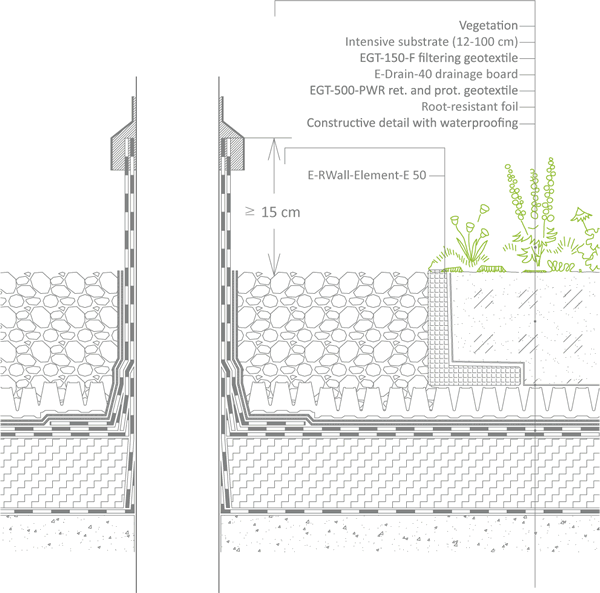

Ventilation Systems

Connection

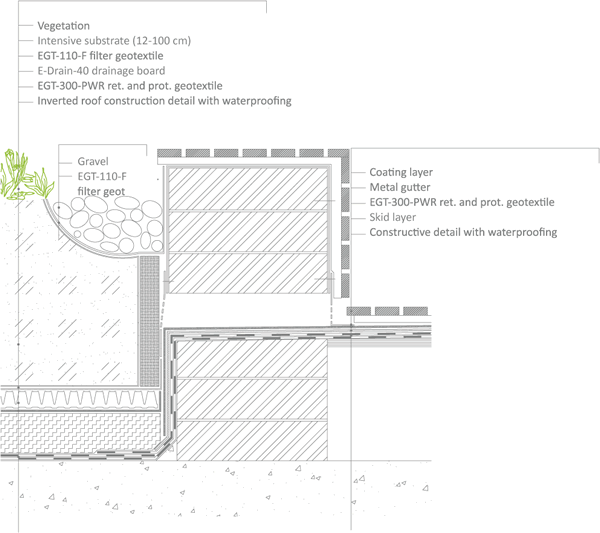

Bench Seat

Connection

Natural Soil

Connection

The green roof structure allows the system to be connected to the natural ground, through a suitable junction between the natural soil and the green roof structure, such as in the case of the edge of an underground car park, garages or residential houses built on sloping land. First of all, to avoid accumulations of water from rainfall and soil erosion, it is important to ensure good drainage of the green roof and the neighbourhood of the wall in the area where it meets the natural soil.

Given the specific features of the site, the construction and the project, this can be achieved by choosing the suitable drainage system that prevents the accumulation of water at the base of the roof/wall and allows the water to drain away efficiently. In addition, a filter layer must be installed along the drainage area, where it connects to the natural soil, to avoid clogging of particles from the two different substrates.

Discover our detailed architectural drawings!

Register for exclusive access to DWG and PDF plans

Go to the Library
