Ecostratos

SafetyPro

Safety System

Data sheet

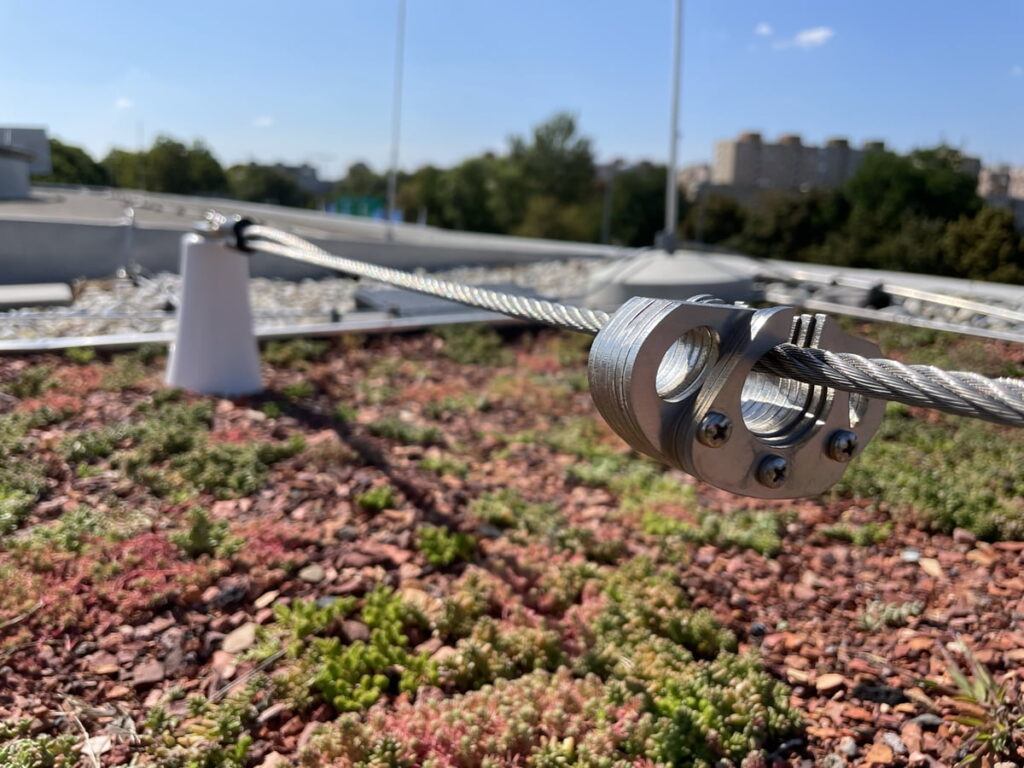

The safety system is an anchor point on the green roof that provides constant safety during installation, use and during periodic maintenance work. As the green roof is placed at a height, it is essential to ensure anti-slip and anti-fall protection.

The elements of the system are fixed by ballasting (loading) the elements with heavy materials, without breaking through the waterproofing. The length of the system can be adjusted according to needs, in any size. It is recommended for any type of green roof (extensive, semi-intensive, intensive, inverted), for horizontal roofs with a maximum inclination of 17o.

Safety System
Advantages
  • Installed in linear system ensures free movement along the system without having to reattach, users can tie to a fixing point and move freely in the continuous line of the anchor, offers more convenient and simple use than the system with single point of fixation; no need for permanent rope adjustment.
  • The system can be of any size in length.
  • Can also be used on roofs where use with a single anchor point is not recommended.
  • The stability is ensured by the weight of the ballast, it does not require fixing on the roof by piercing the waterproofing.

Properties
  • System components are made of corrosion-resistant stainless steel.
  • Can secure 1+1 people.
  • Complies with the rules related to installation work and maintenance at height, according to EU standards: EN 795:2012, CEN/TS 16415:2013.
