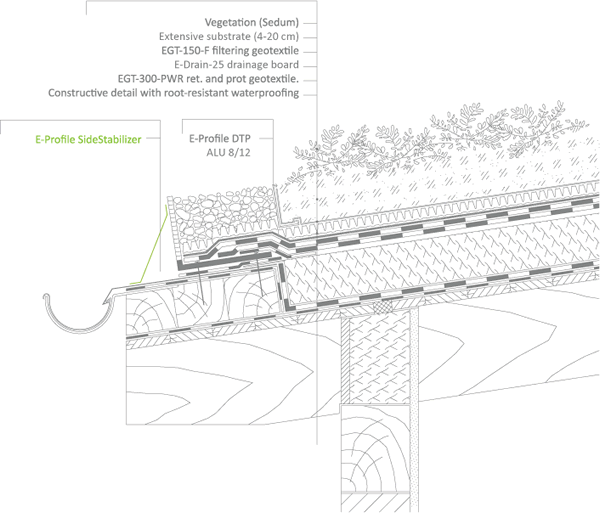

Green Roof with a Slope Below 15°

A green roof can be installed on any type of roof, even on steeply pitched roofs.

In the case of the roof with a slope of less than 15°, no additional anti-erosion system is needed, the system is stabilized by its own weight, the correct functioning of the drainage system is important, which contributes to the long-term evacuation of unretained water from the roof.

Green Roof with a Slope Below 15°
Green Roof with a Slope Below 15°

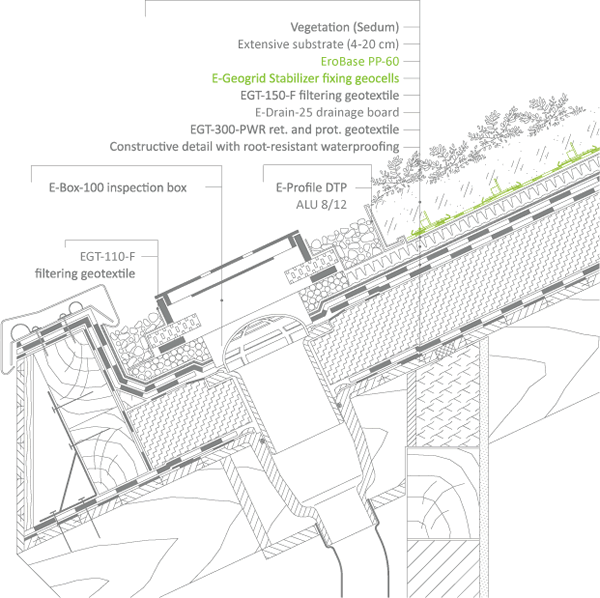

Green Roof with a Slope of More Than 15°

Sloped green roofs have higher visibility and increase the aesthetic value of the building.

In the case of roofs with a slope greater than 15°, it is recommended to install an anti-erosion system, specially designed for green roofs, it has the role of supporting the extensive green roof system on a sloping roof; the system is fixed with clamps, cables, special geogrids, so a stable structure is formed, without breaking through the waterproofing.
